StreamPro ADCP Acoustic Doppler Water Flow Profiler Meter Streamline Your Operations

Name: StreamPro ADCP Acoustic Doppler Water Flow Profiler Meter Streamline Your Operations
Brand: Tekhydro
Price: 33 USD

StreamPro ADCP Acoustic Doppler Water Flow Profiler Meter Streamline Your Operations Manufactures

Place of Origin : Beijing, China

Brand Name : Tekhydro

Model Number : StreamPro ADCP

Micro-transducer : diameter 3.5cm, length 12cm

Electronic unit : 20cm long, 10cm wide, 15cm thick

Small floating body : 71cm long, 43cm wide, 10cm thick

wireless communication : Bluetooth (BlueTooth)

Pocket PC operating software : StreamPro

Laptop operating software : WinRiver II

Dimensions Electronic unit : 15x 20x 10cm

Transducer : 3.5cm( D)x 15cm( L)

Float : 44x 70x 11cm

Packaging Details : Cartons

Port : Tianjin

Supply Ability : 2000 Piece/Pieces per Week

MOQ : 1 piece

Price : $33,000.00 - $35,000.00/sets

Contact Now

StreamPro ADCP Acoustic Doppler Water Flow Profiler Meter Streamline Your Operations

StreamPro ADCP Acoustic Doppler Flow Profiler

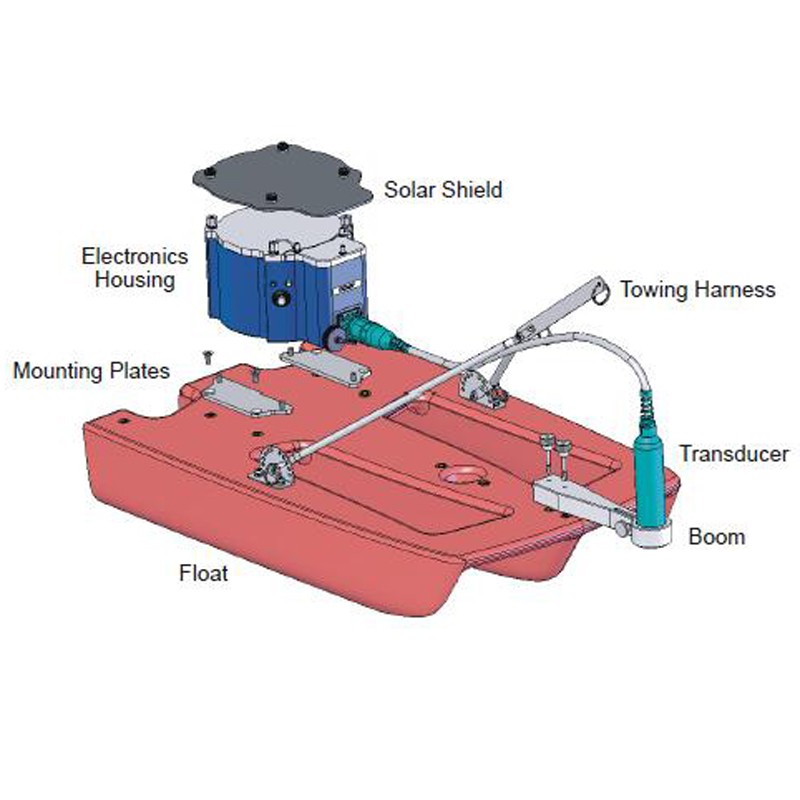

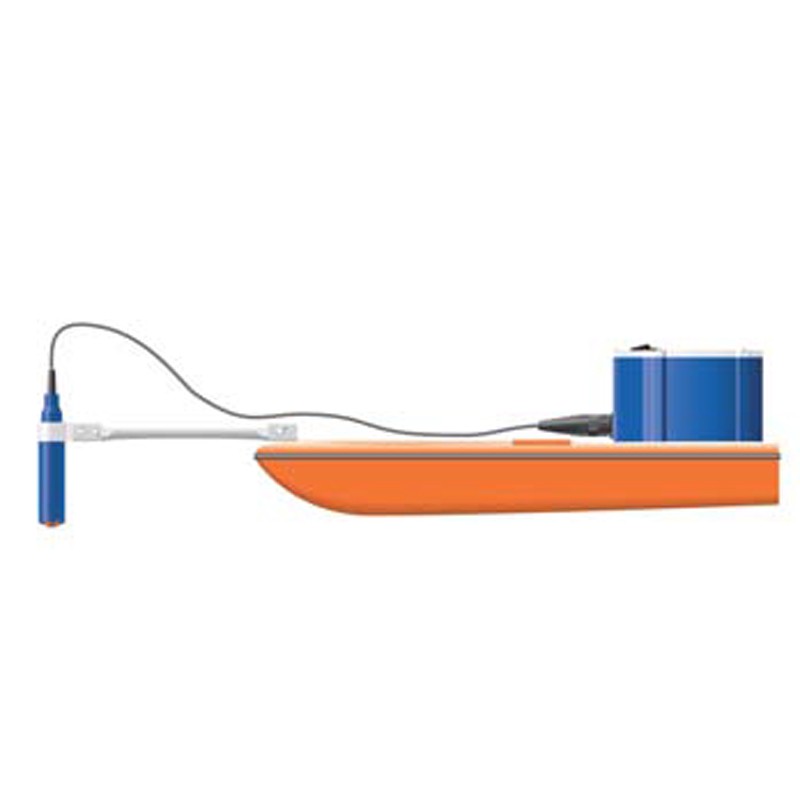

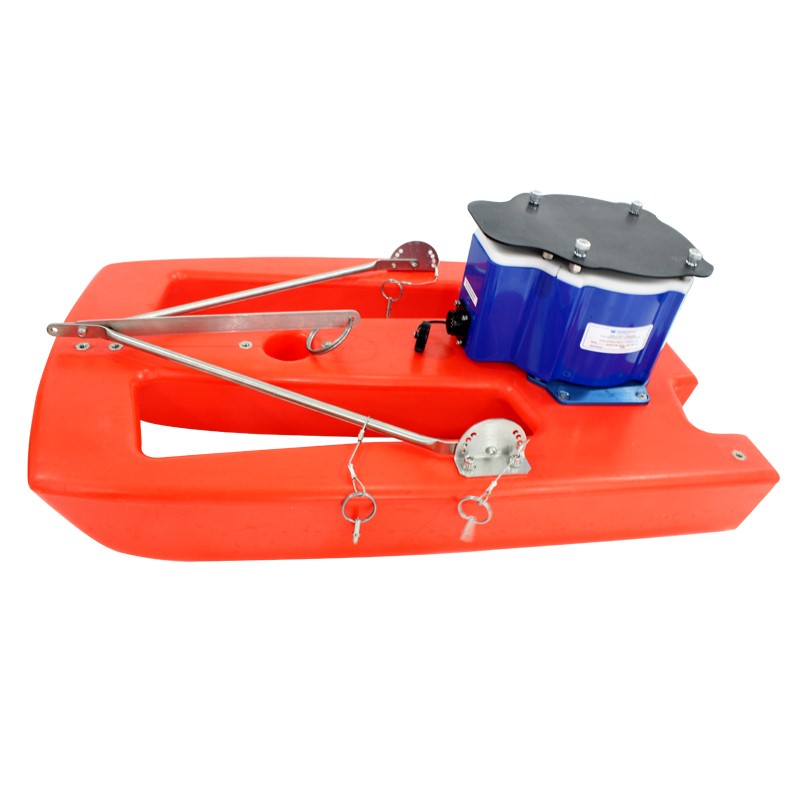

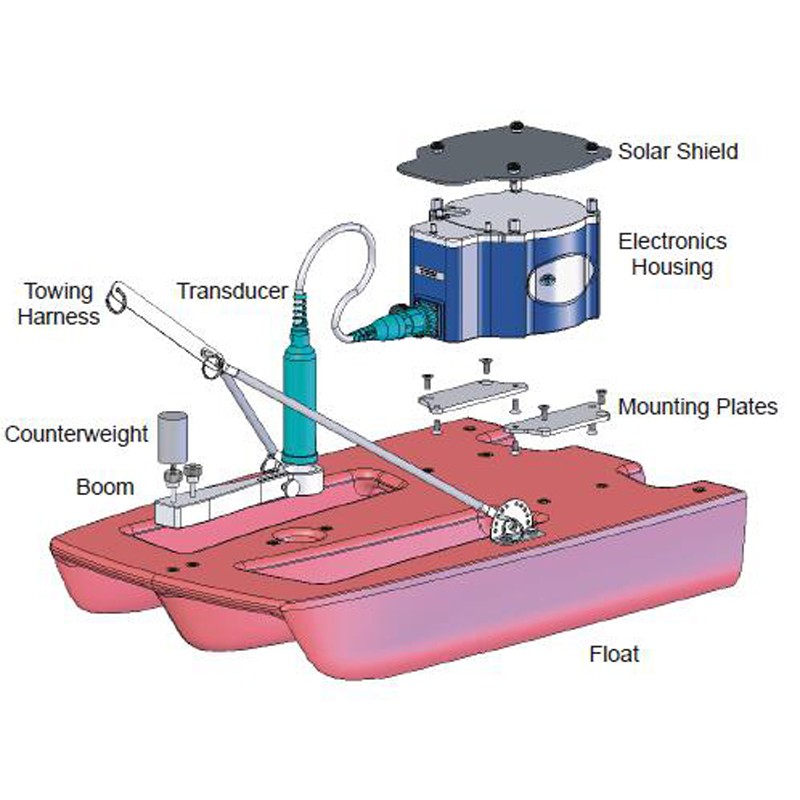

The StreamPro ADCP is designed to measure real-time velocity and discharge measurements in shallow streams. The StreamPro system consists of a transducer, electronics housing, float, and software.

Detailed Images

1. Velocity Profiling Specifications

* # Cells: 1-20
* Min. Cell size (cm): 2
* Max. cell size (cm): 10
* Max. Range (m): 2
* 1st Cell start (cm): 3 to 50

Accuracy
* (cell = 1/2 max.): ±1.0%, ± 0.2cm/s
* Resolution (mm/s): 1

* Velocity Range (m/s): ±2

2. Transducer Specifications

* Frequency: 2.0 MHz
* Geometry: 4 beams, ±20ºbeam angle
* Beam Width: 3.0 degrees
* Material: Polyurethane

3. Standard Sensors Specifications

* Range: -4º to 40ºC
* Accuracy: ±0.5ºC
* Resolution: 0.01º

* Temperature: Thermistor in metallic housing in direct contact with the water

4. Communications Specifications

* Bluetooth Wireless
* Bad Rates: 115,200 BPS

NOTE: FCC Compliance - This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference;

(2) this device must accept any interference received, including interference that may cause undesired operation.

5. Power Specifications

* Voltage: 12 VDC nominal
* Deployment Duration (Continuous operation): Battery Used for Test
* 8 AA cells, Lithium (2900mAh @ 1.5vdc) ≈21 hours; Energizer Lithium L91
* 8 AA cells, Rechargeable Nickel-metal hydride (1850mAh @ 1.2vdc) ≈12.75 hours; Rayovac 15 minute IC3
* 8 AA cells, Alkaline (2850mAh @ 1.5vdc) ≈7.5 hours Energizer Alkaline and Duracell Procell

6. Environmental Specifications

* Range of: O℃ to 21℃.

* Battery Shelf Life: Use within one month.

* ADCP must be under 50ºC).
* Operating temperature: -5°to 40℃(internal temperature of the StreamPro
* Storage temperature: -25° to 60℃(with battery pack removed).
* Battery Storage: Batteries should be stored in dry air with a temperature.
