CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

Mounting Type : Insert into soil

Description : soil sensor

Model Number : BGT-SEC

Place of Origin : Beijing, China

Brand Name : BGT

Application : soil test

Product name : UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor

Key Word : Soil ec sensor

Working voltage : 2-5V, 3.3V

Response Time : <1 s

Protection level : IP68

Working temperature range : -40℃~85℃

Measuring range mositure : 0-100.00%

Accuracy mositure : ±3%(0-53%);±5%(>53%)

EC (Conductivity) : 0-20000uS/cm (25℃) (0-20.0EC)

Resolution moisture : 0.01%

Packaging Details : Box

Port : Tianjin

Supply Ability : 100000 Set/Sets per Month

Price : $78.96/pieces 1-9 pieces

MOQ : 1 piece

Contact Now

Please Attention

CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Product Description

Industrial volumetric water content MODBUS-RTU RS485 UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor for farm

The new developed soil moisture temperature EC three-in-one sensor is a soil sensor developed with a new technical scheme, whichcan measure soil moisture, temperature and conductivity at the same time, and carry out compensation calculation among parameters,eliminating the influence of conductivity on water, temperature on water and temperature on conductivity, can perform compensation operation and accurate evaluation.

This product can be used to measure the moisture content of saline-alkali land, which is not affected by the salt content of soil and can accurately measure the moisture content of soil.

It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needle
isolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.

Features

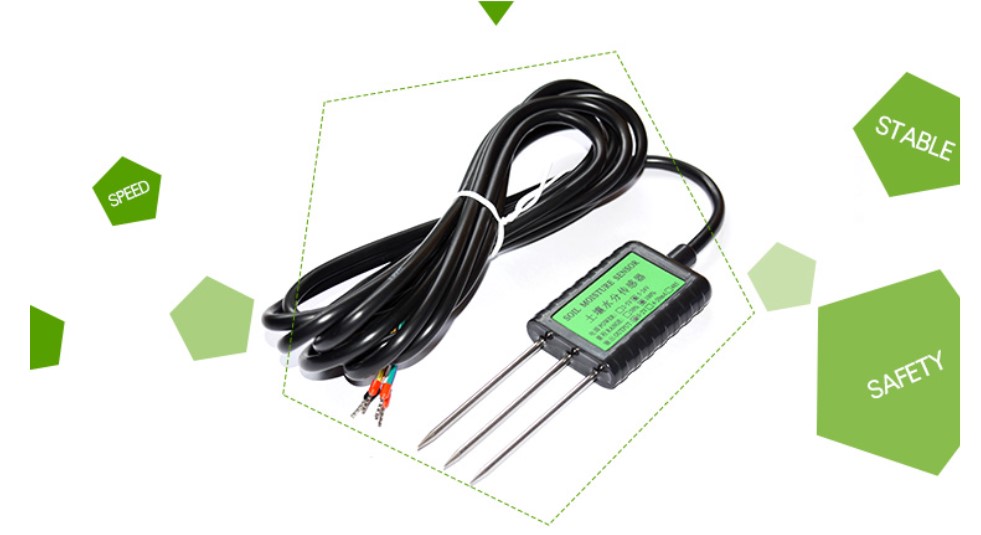

▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response
▶ Easy Installation
▶ Directly Buried in Soil
▶ Widly Application

Application

● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing

Technical parameter

Parameters of the category	Moisture	EC (Conductivity)	Temperature
Measuring range	0-100.00%	0-20000uS/cm (25℃) (0-20.0EC)	-40.00℃～85.00℃
Unit	V/V %,Volumetric moisture content of soil	uS/cm, Micro Siemens/cm	℃ centigrade degree
Resolution	0.01%	1 uS/cm	0.01℃
Accuracy	±3%（0-53%）；±5%（>53%）	2%FS, 2% of the value	Error < 0.3℃（-10℃～50℃）others <0.6℃
Swap precision	< 3%	< 2%FS	< 0.3℃
Repetition measurement error	< 2%	< 2%FS	< 0.2℃
Response time when powered	1 s	1 s	1 s
Measured stability time	< 2 s	< 2 s	< 2 s
Measurement principle	Frequency domain (FDR) add temperature and conductivity correction	Conductivity measurement, plus temperature compensation	RTD Thermal sensor, plus nonlinear correction

System Frame Diagram

Application

Company Profile

Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owning more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.

We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.
