WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Warranty : 1year

Customized support : OEM, ODM

Place of Origin : Beijing, China

Brand Name : BGT

Model Number : WS-601SS5

Product name : Tipping bucket rain gauge

Inner Diameter : 200mm(8 inch)

Resolution : 0.5mm; Optional:0.1mm/0.2mm

Measuring range : ≤4mm/min

Accuracy : ±≤ 4%

Output : Pulse; RS485 (Optional)

Operating Temperature : -10℃~50℃

Material : Steel stainless

Weight : 3.5kg

Packaging Details : CARTON

Price : $92.70/sets 1-49 sets

MOQ : 1 piece

Contact Now

Please Attention

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Product Description

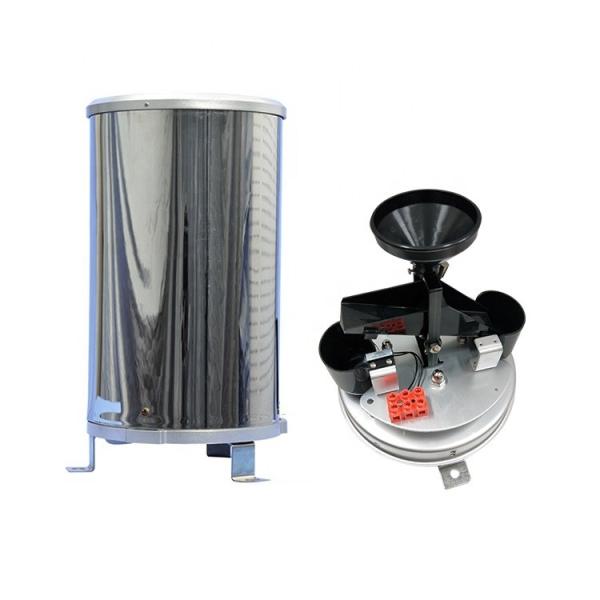

WS-601SS5 Tipping Bucket Rain Gauge ( rain sensor )

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom

Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

Calibration Certification

CE

ISO9001

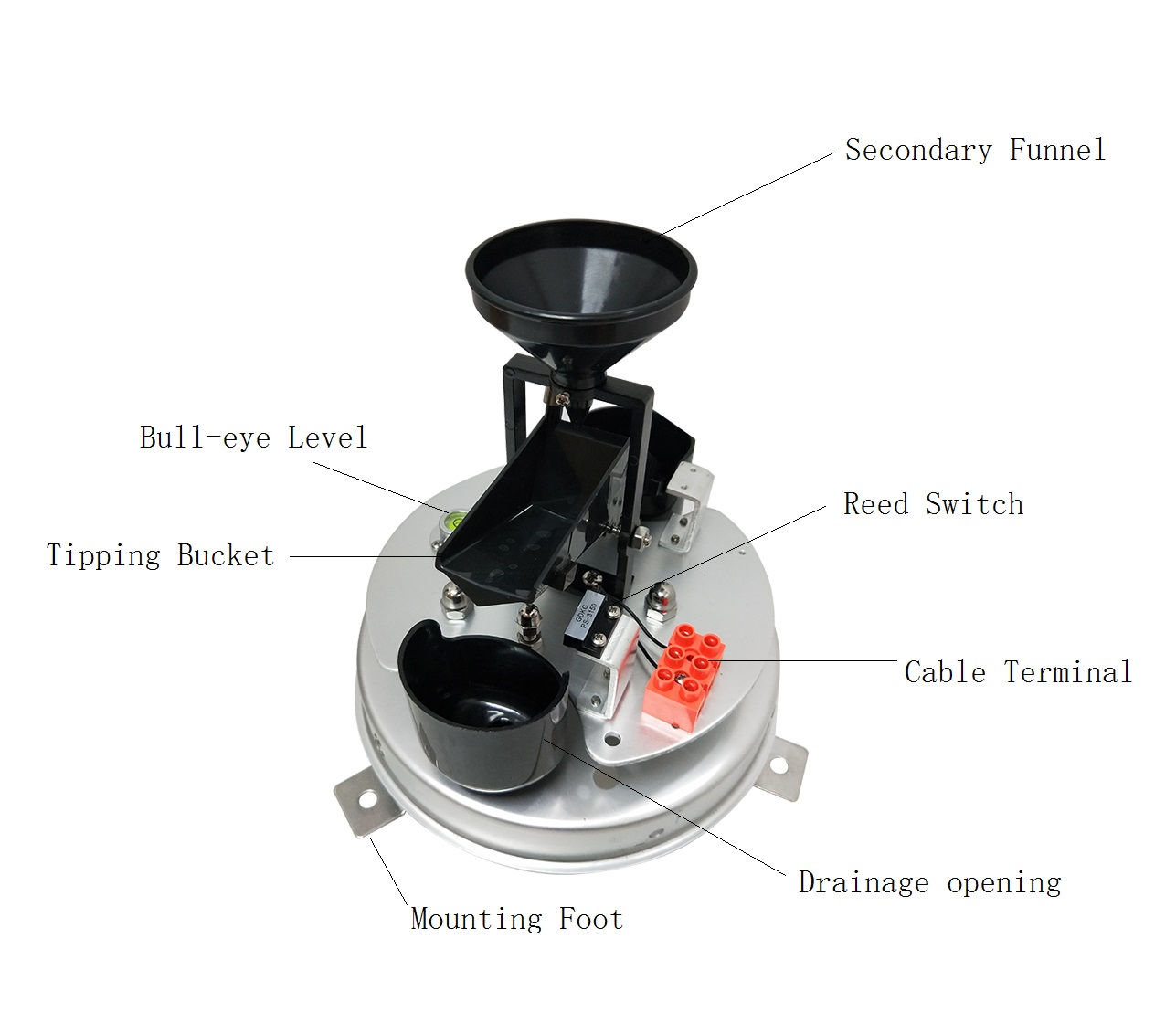

1.Enclosure assembly (Body)

2.Funnel

3.Bracket

4.Tips

5.Reed switch

6. Discharge holder

7. Mounting foot

8. Bull-eye Level

Type	WS-601SS5
Material	Steel stainless(Boday)
Tipping Bucket	Black ABS (plastic)
Measuring range	0~8mm/min
Accuracy	±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr);
Resolution	0.5mm (15.7cc)
Inner diameter	200mm/8inch ±0.3%
Acute angle of cutting edge	40~45°
Insect protection	Steel stainless Mesh
Output	Standard Pulse(Reed switch, 2pulse/mm); RS485 optional (RS485 Price will be higher)
Power supply	Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Level control	Bulls eye level adhered
Base	Diecast aluminium
Mounting holes	Three mountings
Discharge control	Straight through flow mechanism
Working temperature	-20～80℃
Working humidity	0%~95%RH
Weight	3.3Kg
Packing Size	313146cm

Note:

The price is for standard pulse output, if you need RS 485 output , please ask us.

Appliction

Why Choose Us

◆10 years in hydrology and meteorology wireless communication industry

◆Apply in more than 70 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation

FAQ

Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
